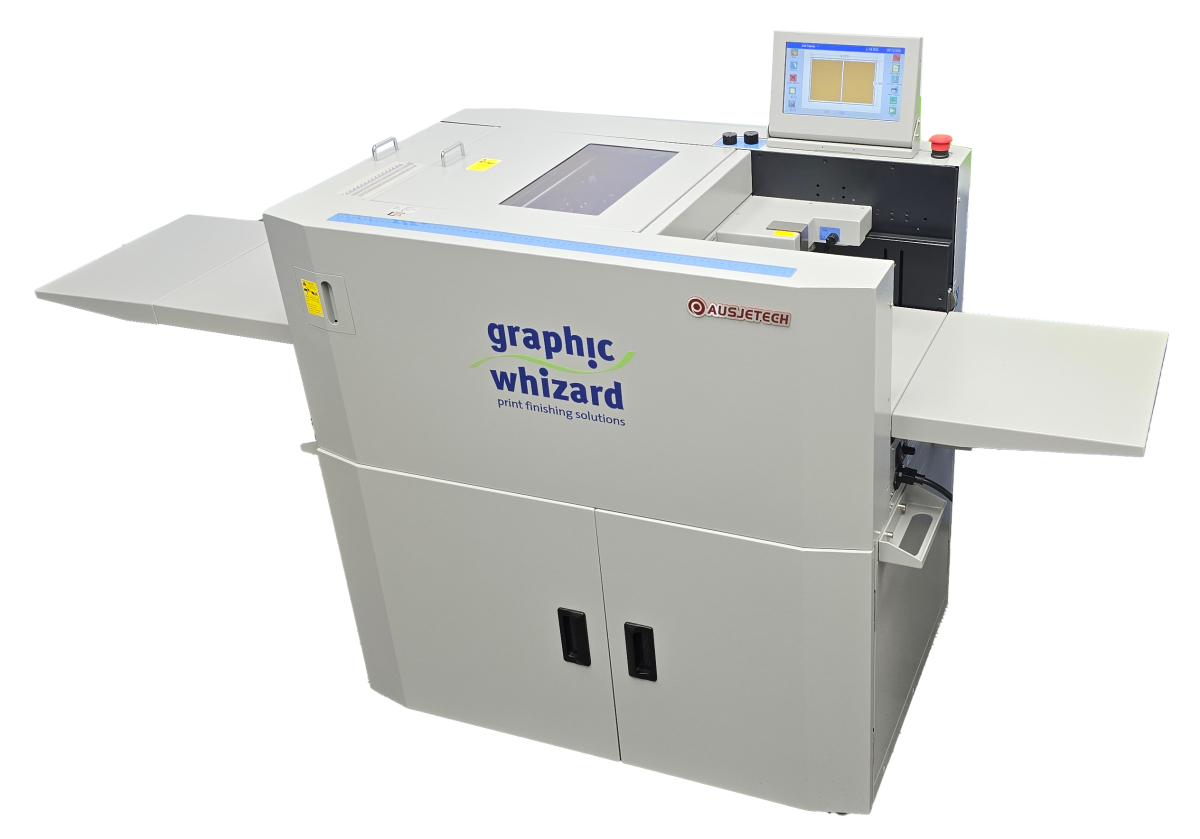

Graphic Whizard PT 8336SCC Multi – Slit/Cut/Crease/Strike/Perf/Score
The Graphic Whizard PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 8336SCC Multi can quickly switch from perfing to creasing to prevent digital toner cracking. Strike perf capability alloys that the PT 8336SCC Multi to do partial perfs in both directions for “T” or “box” perfs.
The PT 8336SCC Multi makes short work of; business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, tent cards, and more by simply loading the high capacity 4” vacuum pile feeder. Processing sheets up to 400 gsm at speeds of 25 sheets per minute (8.5” x 11”, 2 cuts, 1 crease) the PT
8336SCC Multi is an ideal finishing solution to maximize efficiency while minimizing operator intervention.
Advantages at a glance
- 4” deep pile feeder
- Multi accessory output
- 9” color touchscreen

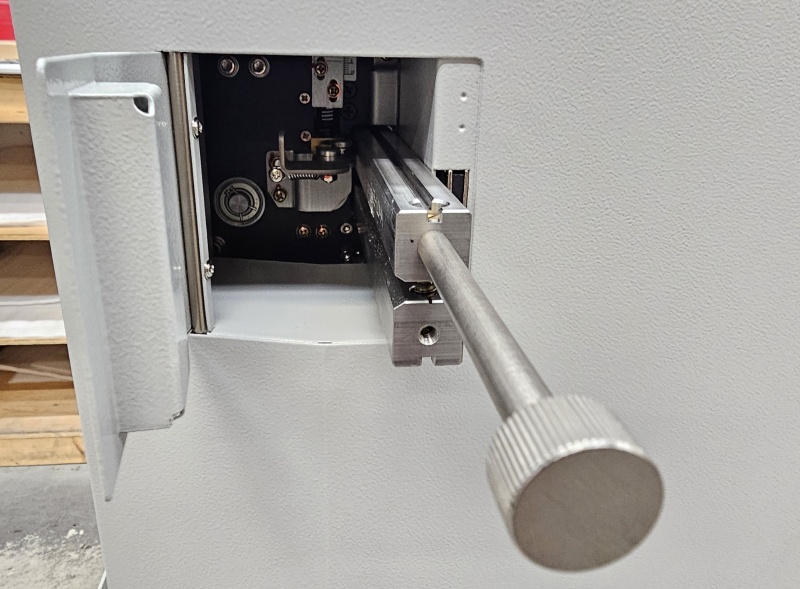

- Interchangeable crease/perf dies
- Built-in job creator and 64 job program memory

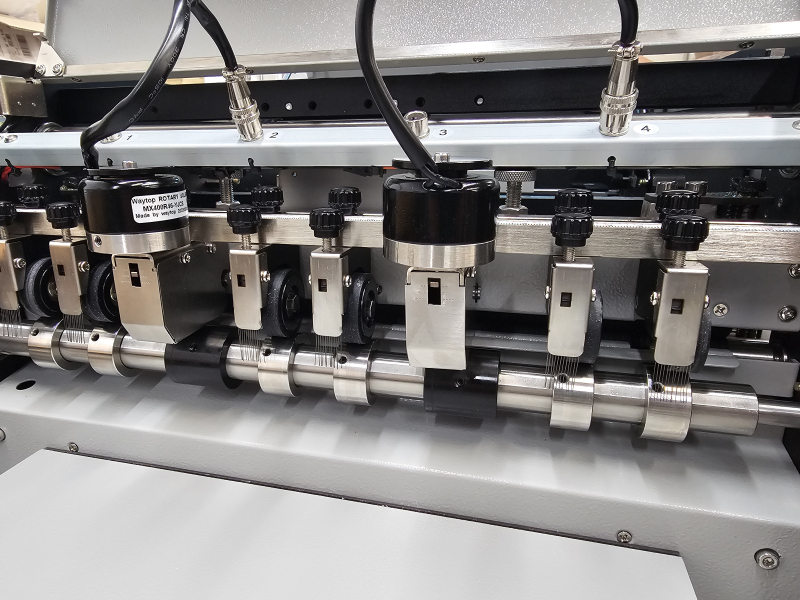

- Strike perf capabilities for “box” or “T” perfs
- Automated crease depth adjustment
Product Information
Brochure
Description
| Paper Size: | Minimum: 8.26” x 8.26” Maximum: 13” x 26.5” 40″ handfed |
| Paper Type: | Non-coated, coated, laminated |
| Margin Slit: | Side trim 0.125” – 1.5” |
| Gutter Slit: | Width 0.2” – 0.59” (large gutters can be run, but will output on the exit tray) |
| Linear Multi-tool Option: | Up to 4 linear strike perf options, 12 or 24 Tpi perf tools Linear score or kiss-cut tools |
| Interchangeable Crease/Perf Dies: | Crease die options – 0.6 mm, 1 mm, .2 mm, 1.4 mm Perf die options – 12 Tpi or 24 Tpi 8 depth settings controlled through the touchscreen |
| Paper Weight: | 150 – 400 gsm |
| Slit/Cut/Crease: | Up to 6 slits, 32 cuts, 32 creases per sheet |
| Speed | 25 sheets per minute (8.5” x 11”, 2 cuts, 1 crease) |
| Image Shift Compensation: | Both X and Y axis |
| Image Shrink/Stretch Compensation: | Both X and Y axis |
