Graphic Whizard PT 335AKF Automatic Creaser/Knife Folder

The Graphic Whizard PT 335AKF Automatic Creaser/Knife Folder combines the Graphic Whizard PT 335A+ Multi Creaser with the Graphic Whizard PT 33IKF Independent Knife Folder into one unit. Processes up to a maximum sheet size of 13” x 35” without limitations between creases. The PT 335AKF features an efficient 4” pile feeder, easy-to-replace front-loading interchangeable crease/perf dies with 4 crease width options for difficult or varied stock thicknesses, simple touchscreen controls with auto sheet measure, perfect bind mode and up to 64 jobs can be stored into long-term memory. Creasing only through the folder bypass means the ability to deliver long sheets into the bypass tray without curling. Compensate for irregular fold patterns through simple touchscreen controls.

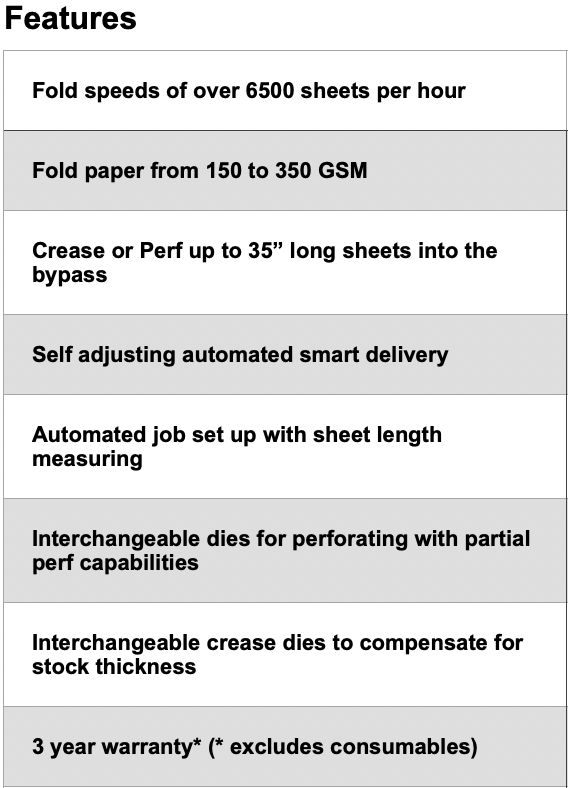

Advantages at a glance

  • Auto sheet length measurement
  • Automated or manual job set-up for custom jobs
  • No limitations between creases/perfs

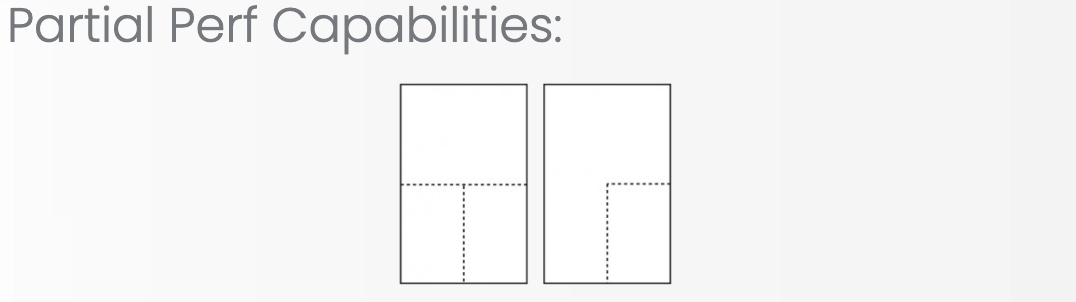

  • Partial perforation capabilities in both directions
  • 6” color touchscreen
  • Self-adjusting automated smart delivery
  • Fold bypass for creasing/perfing only
  • 3 years parts & electronics warranty



Product Information

  Catalog

Product Video

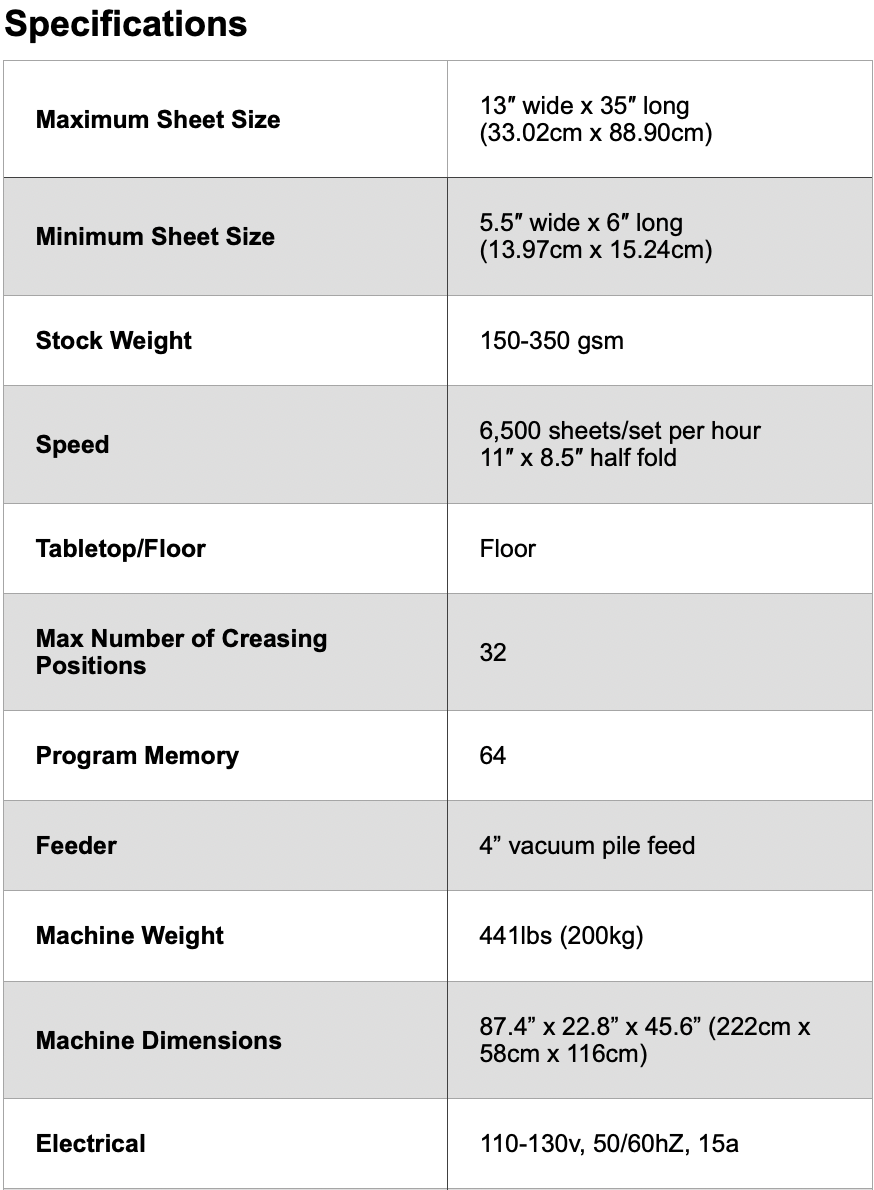

Description

Speed: 7,040 SPH (8.5” x 11” – half fold)
Electrical: 110V, 50/60 Hz, 15A
Minimum Stock Size: 5.5” x 6”
Maximum Stock Size: 13” x 35”
Stock Weight: 150-350 gsm

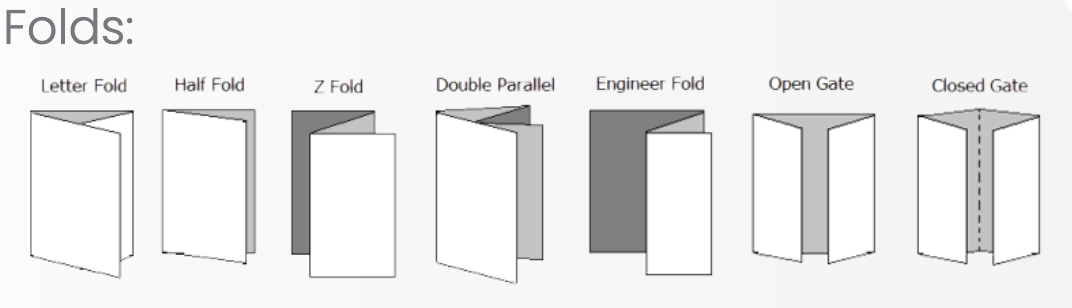

Fold Types: 7 preset folds and micro-adjust compensation
Feeder: 4” deep vacuum pile feeder

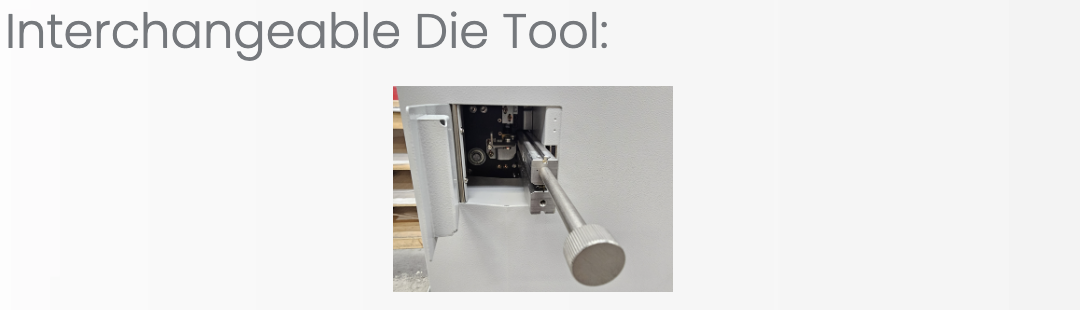

Dies: Interchangeable crease/cross-perf dies available
Set-up:  Automated touchscreen control
